Title & summary

Manual assembly of part FWD TRIGGER ASSY (1252158-039). The operator places a pin into an assembly fixture, layers plastic washers and a central component onto the pin, and secures it with an e-clip using specialized insertion tool N059.

Safety & isolation

Read before starting: isolation / lockout-tagout, PPE and the hazards of this task.

Nothing recorded yet. Use Edit to add isolation steps, PPE and hazards.

Work instructions

Each step shows a frame from the video. Click a step to jump the player to that moment.

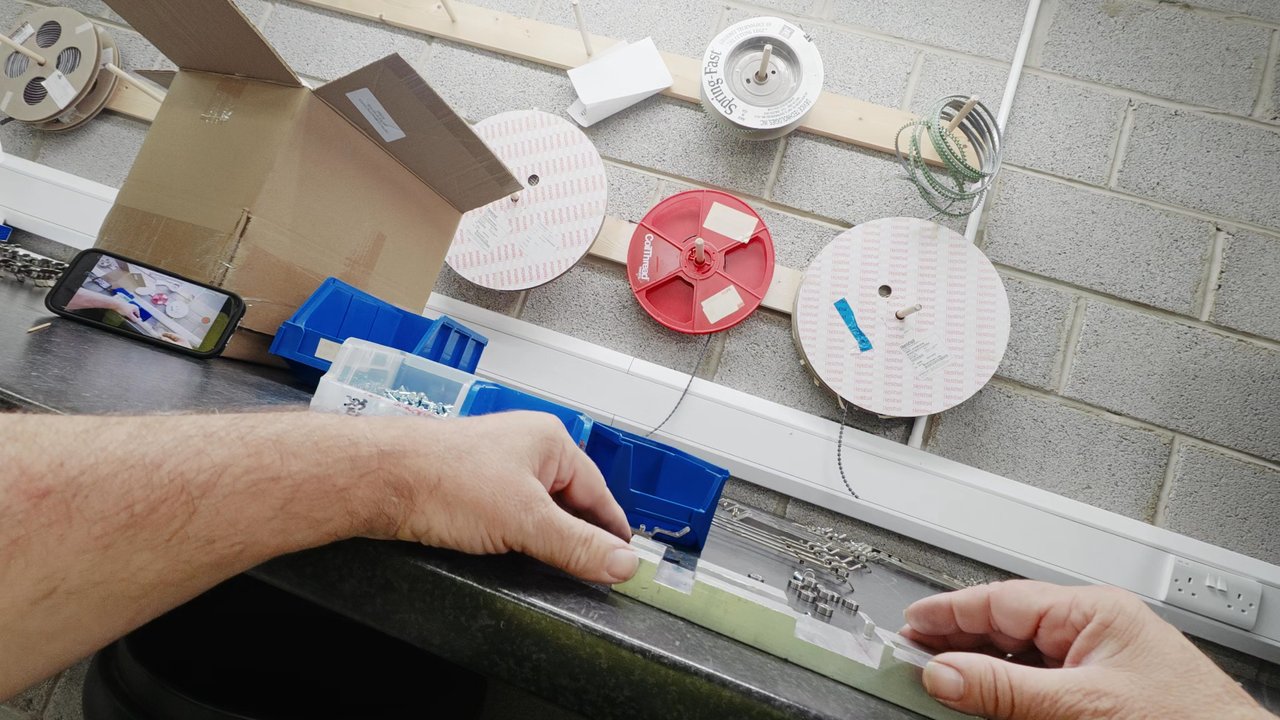

Assemble Pin, Washers, and Bushing

Insert the main pin into the fixture in proper orientation. Thread lower plastic washer, bushing, and upper plastic washer onto the pin.

Safety: Mind pinch points near assembly block.

Quality: Ensure correct component sequence and orientation on the pin.

0:21 - 0:50

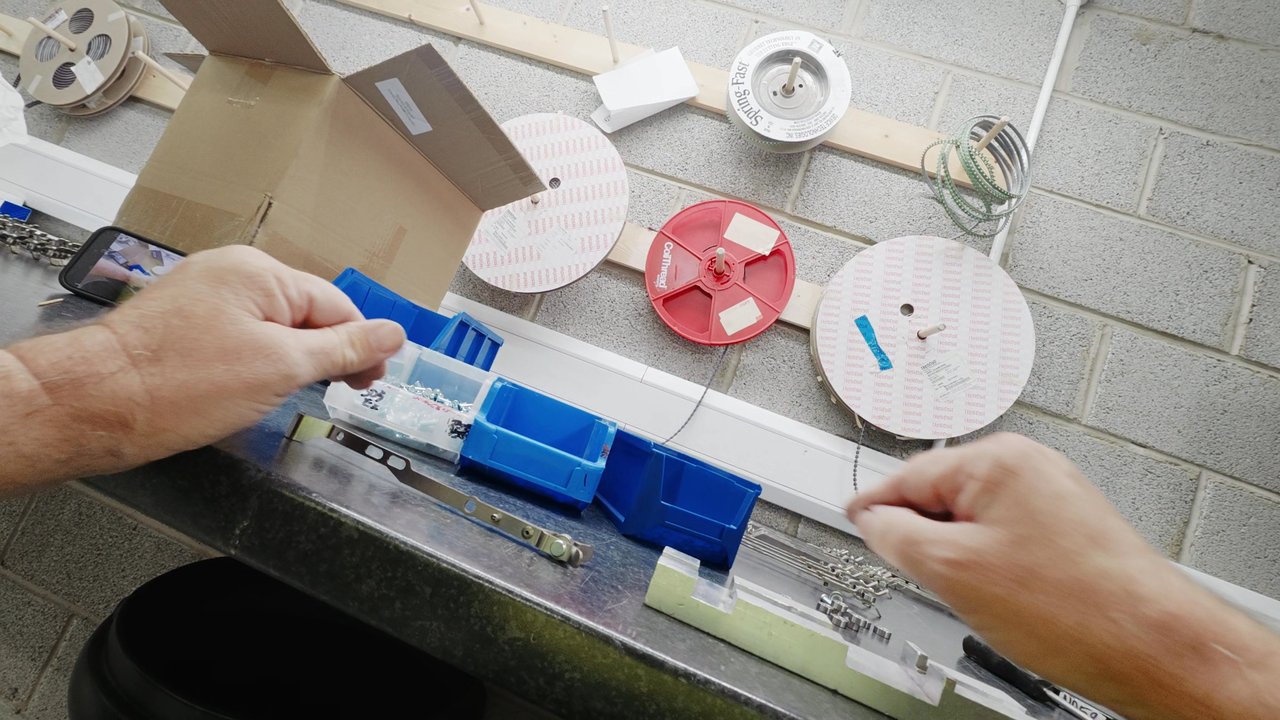

Install Securing E-Clip

Pick up tool N059 loaded with an e-clip and press clip firmly onto the end of the pin to lock assembly.

Safety: Keep fingers clear of clip pusher mechanism.

Quality: Verify e-clip is fully seated in pin groove.

0:51 - 1:45

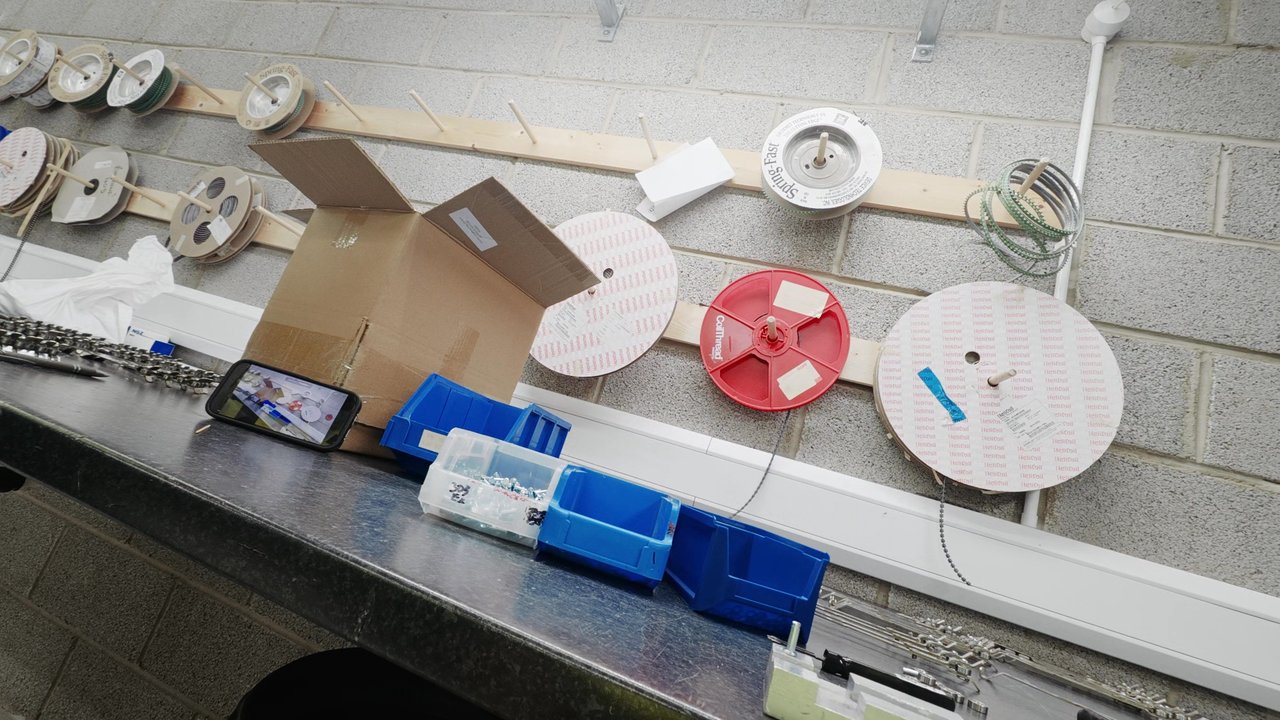

Post-Assembly Review and Discussion

Explain tool N059 function and discuss component kitting/part numbering with colleague.

Safety: None

Quality: N/A

1:46 - 2:32
